General Introduction to Ceiling Perimeter Beads and uPVC Shadowline Beads

Finishing beads are construction accessories designed to make finishing works faster, more accurate and visually refined while reducing installation errors. They can be manufactured from various materials, including galvanized steel, stainless steel, uPVC and aluminium.

uPVC finishing beads are engineered uPVC profiles available in various designs for building finishing works, including plastering, rendering, tiling and skim-coat application.

Ceiling perimeter beads are manufactured from materials such as stainless steel, uPVC, aluminium or galvanized steel. They are used in skim-coating and painting works for plasterboard systems to create a recessed architectural detail and conceal cracks at the exposed edges of plasterboard ceilings and partitions.

uPVC Shadowline Beads are manufactured from engineered uPVC with a purpose-designed Z-shaped profile for finishing plasterboard ceilings and partitions. They form a precise perimeter detail around plasterboard surfaces and create an architectural shadow gap at ceiling-to-wall and partition-to-floor junctions.

uPVC Shadowline Beads are also known as Z beads, plasterboard shadow-gap beads, drywall shadowline beads or Z-shaped plasterboard beads.

Types of uPVC Shadowline Beads


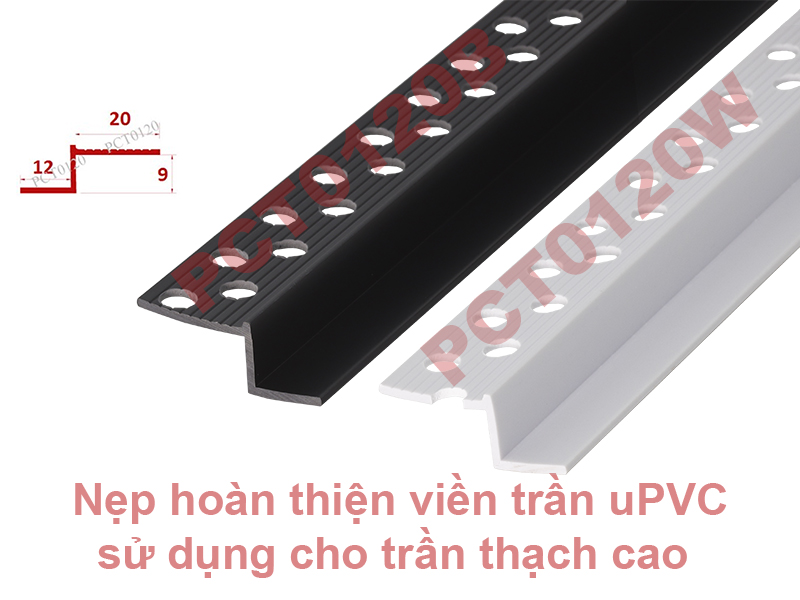

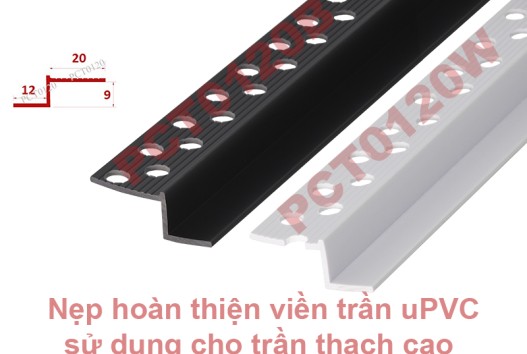

A Z-shaped uPVC Shadowline Bead used to form a perimeter separation between a plasterboard ceiling and the wall. It helps reduce cracking at the junction and creates a clean, ventilated shadow gap around the ceiling.	A Z-shaped uPVC Shadowline Bead used to form a perimeter separation between a plasterboard partition and the floor. It helps reduce cracking at the junction, creates an open detail at the base of the partition and makes cleaning easier.

Functions of uPVC Shadowline Beads

uPVC Shadowline Beads provide the following functions:

Create a precise architectural perimeter around plasterboard panels, separating the boards from adjoining surfaces and forming a clean, open detail at ceiling and partition edges.
When installed around a plasterboard ceiling, they form a continuous perimeter line, separate the ceiling from the walls, conceal the ceiling-to-wall junction, help reduce cracking and create a shadow-gap effect that enhances contemporary interiors.
When installed at the base of a plasterboard partition, they form a continuous perimeter detail, separate the partition from the floor, conceal the junction, help reduce cracking, improve ventilation and make the base easier to clean. They also help reduce capillary moisture from reaching the bottom of the plasterboard partition.
Improve the quality of plasterboard finishing works by enabling faster, more accurate and visually refined installation while enhancing user safety and reducing maintenance costs.

General Introduction to PVC, uPVC and Engineered uPVC

uPVC Shadowline Beads are manufactured from uPVC, also known as PVC-U. The full name of uPVC is “Unplasticized Polyvinyl Chloride”. It is a rigid form of PVC that contains no plasticizers. This rigidity gives uPVC enhanced mechanical, physical and chemical properties compared with conventional flexible PVC.

HAN develops engineered uPVC from a uPVC base formulation and adds specific mechanical, physical and chemical performance characteristics to suit different construction applications.

HAN uPVC Shadowline Beads are made from engineered uPVC to provide enhanced rigidity, toughness, elasticity, surface gloss, colour stability and chemical resistance, making them suitable for interior and exterior finishing applications.

HAN uPVC Shadowline Beads are safe for installers and building users when used as intended. Their surfaces resist moss accumulation, are easy to clean and help reduce capillary moisture penetration.

The service life of HAN uPVC Shadowline Beads is compatible with that of plasterboard systems under normal ambient and climatic conditions.

Identifying Features of HAN uPVC Shadowline Beads

No.	Feature	HAN uPVC Shadowline Beads
1	Product code	PCT0120, PCT0500
2	Design	Perimeter profile for plasterboard ceilings and partitions
3	Profile configuration	Z-shaped profile with a ribbed, perforated flange and a stepped body that forms the shadow gap
4	Size	Suitable for plasterboard with a minimum thickness of 9 mm
5	Application	Creates a separation detail around plasterboard panels
6	Colours	White, grey, black or custom colours upon request
7	Manufacturing technology	Engineered uPVC extrusion
8	Material	Engineered uPVC
9	Surface finish	Smooth and glossy
10	Mechanical, physical and chemical properties	Suitable for plasterboard finishing works in accordance with current construction standards
11	Packaging	2.5 metres per bead; 50–100 beads per carton

Selecting and Using uPVC Shadowline Beads for Plasterboard Ceilings and Partitions

To achieve the best technical, economic and aesthetic results when using uPVC Shadowline Beads for plasterboard ceilings and partitions, customers should consider the following:

No.	Item	Key considerations	What to avoid
1	Product code	Identify the correct HAN product code when the construction specification has already been established.
2	Design	Select a design and colour suitable for the application.	Do not select a lower-cost design without considering installation requirements, performance and finished appearance.
3	Size	The plasterboard thickness must be compatible with the bead height. The plasterboard thickness must be equal to or greater than the bead height.
4	Standard lengths	For small quantities, use HAN’s standard lengths of 2, 2.5 or 3 metres. For high-volume projects, custom-cut lengths can reduce offcuts, material waste and unnecessary costs.	Avoid ordering unsuitable lengths that create excessive offcuts, material waste and additional installation costs.
5	Quantity	Determine the required quantities and specifications accurately and include a reasonable allowance for cutting waste.
6	Order lead time	Make sure the products are available in the site warehouse before installation begins to prevent delays to the construction programme.	Avoid placing orders too close to the installation date, as this may affect the construction schedule.
7	HAN product identification	Purchase from an authorized distributor or directly from HAN. The packaging should clearly display HAN’s product code, address and telephone number.	Products in packaging that does not clearly display HAN’s factory information may not be genuine HAN products.
8	Responsible personnel	Personnel with suitable technical knowledge and experience should consult directly with HAN’s technical advisory team before making purchasing decisions.
9	Installation method	Follow HAN’s installation instructions: make sure the plasterboard framing is securely positioned and screw heads do not project above the bead surface. A staple gun may also be used where appropriate. Remove excess joint compound from the bead while it is still wet to achieve the best performance and appearance. For product codes supplied with temporary protective film, remove the film at the appropriate time to preserve the finished surface.
10	Storage method	Follow the recommended transport and storage procedures to maintain product quality before installation.

HAN uPVC Shadowline Bead PCT0120W with temporary protective film

To achieve a high-quality finish, remove the temporary protective film at the appropriate time after installation, cleaning and completion of all related works. This helps protect the bead surface until the finished area is ready for use.

Correct Transport and Storage of HAN uPVC Finishing Beads

Transport recommendations for HAN uPVC Finishing Beads:

Do not drag cartons along the ground or throw them from a height.
Do not leave cartons standing vertically or leaning for extended periods.
Use a vehicle with a flat loading platform and a covered cargo area or tarpaulin to protect the products from rain.
When transporting different bead types in the same vehicle, place longer and heavier cartons underneath and shorter and lighter cartons on top.
Do not place heavy or sharp objects on the cartons. Make sure the cartons are not bent, distorted or punctured during transport.
Handle cartons correctly during loading and unloading to prevent tearing, bending or deformation.

Storage recommendations for HAN uPVC Finishing Beads:

Store indoors on pallets in a dry, cool and well-ventilated area. Protect the products from direct sunlight, water, soil, mud, moisture, mould and high temperatures.
Do not store cartons vertically. Individual beads should not be stored upright or leaning for extended periods, as this may cause them to bend.
When the products are not in use, clean and repack them in their cartons to protect them from dust and preserve their colour, smoothness and gloss.
Do not turn cartons upside down. Keep them in the orientation indicated by the arrows printed on the packaging.

Quality Standards for HAN uPVC Shadowline Beads

HAN uPVC Shadowline Beads comply with the following relevant standards and requirements:

ASTM D638, ASTM D790, ASTM D1525 and ASTM D648.
Relevant requirements of the current Vietnamese construction standards (TCVN).
High-quality uPVC finishing beads should meet the criteria below.


The mechanical, physical and chemical properties of the uPVC must meet installation, bonding and in-service performance requirements for plasterboard finishing systems.	The finished bead must be flat, straight, uniform and dimensionally accurate.

Questions and products

To use HAN uPVC Shadowline Beads correctly for plasterboard ceiling and partition installation, customers should observe the following guidelines:

Select the appropriate uPVC shadowline bead profile for the application. Pay particular attention to its profile design, height and width to ensure compliance with the project’s design requirements.
Select a bead size suitable for the plasterboard thickness. The bead height must be no greater than the thickness of the plasterboard.
Choose a suitable colour according to the design and aesthetic requirements. The three standard colours are white, red and grey.
Install and securely fix the framing system before attaching the plasterboard panels.
For ceilings, install the plasterboard panels with a 10 mm gap from the wall. For partitions, maintain a 50 mm gap between the plasterboard and the floor.
Prepare suitable setting-out and levelling tools. A laser level can accelerate installation by simultaneously aligning multiple vertical and horizontal edges within the same area. For outdoor work, use a laser level specifically designed for outdoor conditions.
Use a specialized cutting tool to produce clean and accurate joints. Pay particular attention to the cutting technique at 90° intersections to achieve a neat and visually consistent finish.
Secure the bead with screws. Where possible, drive the screws into the plasterboard framing to ensure firm attachment. Make sure that the screw heads do not protrude above the plasterboard surface. As a practical tip, a staple gun may also be used to temporarily and quickly secure the bead to the plasterboard.
Use a soft, damp cloth to remove any excess joint compound adhering to the bead surface.
Remove the protective film at the appropriate stage to preserve the quality and appearance of the bead.
Store unused beads properly in accordance with HAN’s storage instructions.
