Fiber Concrete Spacer with Tie Wire

Describe Fiber Concrete Spacer with Tie Wire

General introduction of HAN Fiber concrete spacer with tie wire

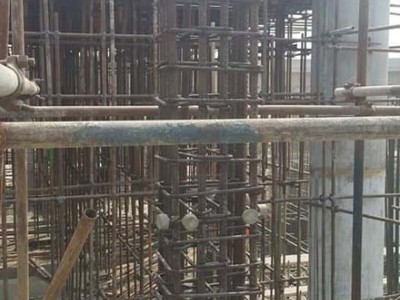

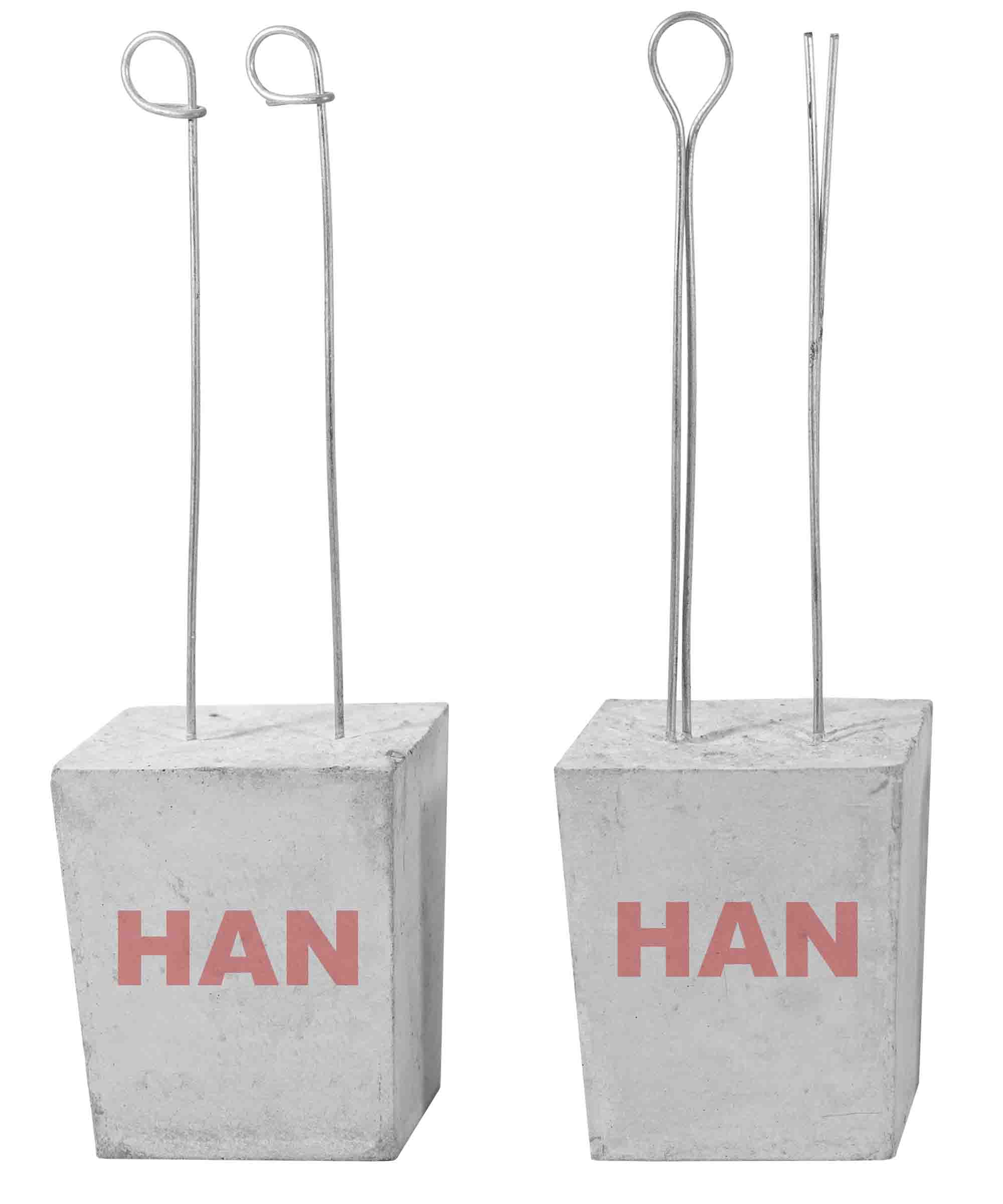

Fiber concrete spacer with tie wire is one of the product lines of HAN concrete spacers with a design that has attached tie wire to firmly tie the concrete support to the steel reinforcement, positioning the steel layer so that it does not shift when pouring concrete, creating an outer concrete layer to protect the reinforced concrete structure inside from environmental erosion such as: oxidation, steel layer corrosion causing destruction of concrete structures leading to unsafe construction.

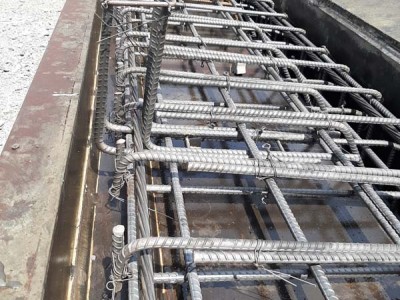

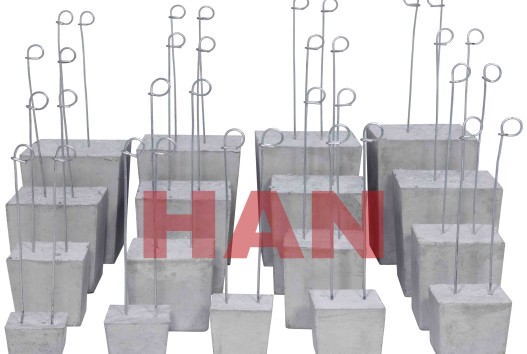

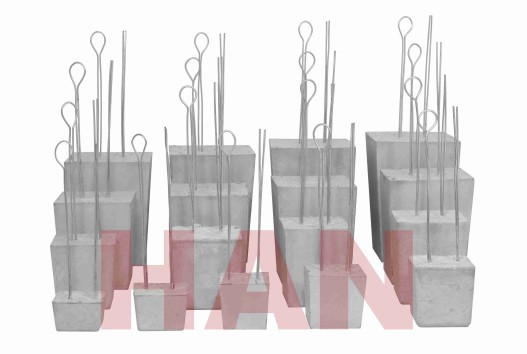

Product list of HAN Fiber Concrete Spacer with embeded tie wire

No	Code	Concrete cover (mm)	pcs/ bags	pcs/ box	kg/ 100 pcs
1	CSS020	20	100 - 700	100 - 350	4 - 5
2	CSS025	25	100 - 500	100 - 250	5 - 6
3	CSS030	30	100 - 400	100 - 200	6 - 7
4	CSS035	35	100 - 300	50 - 150	9 - 10
5	CSS040	40	100 - 200	50 - 100	13 - 15
6	CSS045	45	50 - 150	50 - 75	17 - 18
7	CSS050	50	50 - 100	25 - 75	20 - 22
8	CSS055	55	50 - 100	25 - 75	24 - 26
9	CSS060	60	25 - 75	25 - 50	35 - 37
10	CSS065	65	25 - 50	25 - 40	40 - 43
11	CSS070	70	25 - 50	15 - 30	54 - 56
12	CSS075	75	25 - 50	15 - 25	55 - 57
13	CSS080	80	20 - 40	10 - 20	65 - 67
14	CSS085	85	15 - 30	10 - 20	75 - 80
15	CSS090	90	15 - 30	10 - 20	85 - 90
16	CSS095	95	10 - 20	5 - 10	85 - 90
17	CSS100	100	5 - 10	5 - 10	90 - 95
18	............	≥ 100	as required

Identifying features of HAN's Fiber Concrete Spacer with tie wire

No	Characteristic	Fiber Concrete Spacer with tie wire
1	Design	Usually only 1 size/product
2	Shape	Square or round cylinder… with flat or concave base
3	Cover Size	20 - 150 mm
4	Used for	Foundation, basement, beam, floor, column, beam, floor, wall, roof, concrete structure
5	Color	Natural concrete gray
6	Production technology	Concrete casting
7	Material	Standard
8	Breaking load	good
9	Anti-rollover	good
10	Packing	Plastic bag or carton box

Classification of HAN's Fiber concrete spacers with tie wire

No	Classification criteria	Variou type HAN's Single size concrete spacers
1	Purpose of use	- Fiber concrete spacer with tie wire for foundation - Fiber concrete spacer with tie wire for beams - Fiber concrete spacer with tie wire for columns - Fiber concrete spacer with tie wire for floors - Fiber concrete spacer with tie wire for precast concrete structures
2	Design	- Fiber concrete spacer with tie wire have flat base - Fiber concrete spacer with tie wire have concave base - Single size concrete spacer with tie wire attached
3	Raw Material	- Fiber reinforced concrete spacer
4	Concrete Grade strength	- Standard size Fiber concrete spacer - High grade Fiber Single size concrete spacer
5	Breaking Load	- Standard Fiber concrete spacer with tie wire - Heavy duty Fiber concrete spacer with tie wire
6	Technical standards	- Fiber concrete spacers with tie wire for civil construction - Fiber concrete spacers with tie wire for industrial construction - Fiber concrete spacers with tie wire for road and bridge construction - Fiber concrete spacer with tie wire for construction near the sea

Materials for manufacturing HAN's fiber concrete spacer with tie wire:

Fiber concrete spacer with tie wire are also produced from HAN concrete spacer materials including: sand, cement, stone, water, additives, reinforcing fibers, tie wire ... meeting current construction standards.

Tie wire embed can be:

Steel tie wire: Black annealed, Galvanized, Stainless Steel
Plastic tie wire: Pvc coated.

Technology for manufacturing HAN's fiber concrete spacer with tie wire:

HAN's fiber concrete spacers with tie wire is produced by concrete casting technology. Fiber concrete products are cast from molds for precise dimensions and low tolerances.

How to choose and use HAN fiber concrete spacer with tie wire to achieve high economic and technical efficiency.

No	Content	Should	should not

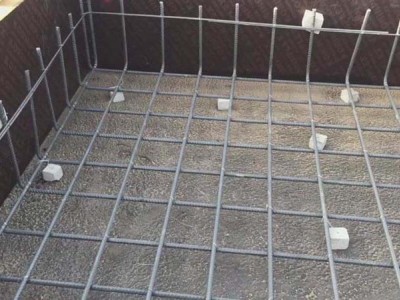

1	Design	You should choose the appropriate concrete spacer design based on specific needs. For example: flat base type is used for foundations, concave base type is used for floors, U-shaped type is suitable for upper floor steel, etc.	Don't choose just one design for all your different needs.
2	Size	You should choose to use single concrete spacer with size from 20mm - 150mm.	Consider choosing concrete spacer larger than 150mm if there are no special requirements.
3	Breaking Load	Should clearly understand the required calculated load and choose a concrete spacer with tie wire with the appropriate load-bearing capacity.	Do not choose a concrete spacers with tie wire with a load capacity lower than required
4	Usage rate	Should use more than the standard rating recommended by HAN	Do not reduce the quantity used even in the case of concrete spacers with tie wire with good load-bearing capacity.
5	Economic and technical efficiency	Technical and economic efficiency should be the deciding criterion when choosing concrete spacers with tie wire.	Do not base your purchase decision solely on the price of a concrete spacers being cheaper or more expensive than other types.
6	Packaging and storage	For frequent use, choose packaged, large quantity, convenient to store.	Consider storage conditions when choosing single size concrete block in carton box If the storage conditions outside the construction site are not suitable
7	HAN brand awareness	Should contact the official dealer or buy directly from HAN with packaging clearly stating HAN information (Product code, address, phone number).	Do not buy products that do not have the HAN brand clearly printed on the packaging.
8	Implementing personnel	Should have knowledgeable and experienced personnel work directly with HAN's technical consulting team when making purchasing decisions	Do not let the accounting department or purchasing staff make purchasing decisions without clearly understanding the technical requirements.

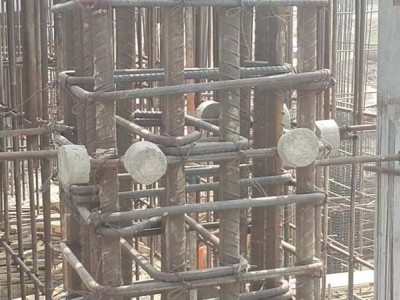

9	Key Points	For horizontal directions, the wire-tied feature will promote fast construction efficiency For positions that are likely to be displaced, the wire-tied feature helps to secure the steel layer. For projects that require fast construction, the wire-tied concrete spacer helps save construction time

Method of transportation and preservation of HAN's Fiber concrete spacer with tie wire:

Notes transporting

Do not drag the packaging on the ground, avoid throwing it from above if packing
When transporting concrete spacer bags or concrete spacer boxes, use a flat-floor truck.
Large bags, suitable products are placed below, the steel floor blocks on top (note code product: CSS050U, CSS070U, CSS090U, CSS110U, ...) are placed on top, do not stack too high.

Notes storing:

Should be kept on a cool, dry floor, avoid direct contact with soil, mud.
If packaged in bags, it can be left outside for 1-3 months.
If packaged in boxes, it must be placed on a pallet, not exposed to water or high humidity.

Quality standards of HAN concrete spacers with tie wire:

Fiber concrete spacer with tie wire also fully meet the standards of HAN concrete spacer, including:

Standard TCXDVN 356: 2005 "Concrete and Reinforced Concrete Structures - Design Standards"
Standard TCVN 4116: 1985 "Concrete and Reinforced Concrete Structures for Hydraulic Works - Design Standards"
Standard TCVN 9139: 2012 "Irrigation Works - Concrete and Reinforced Concrete Structures in Coastal Areas - Technical Requirements"
Standard TCVN 9346: 2012 "Concrete and Reinforced Concrete Structures - Requirements for Protection against Corrosion in Marine Environments"
Standard TCVN 5574:2018 "Design of Concrete and Reinforced Concrete Structures"
Standard BS 7973-1: 2001 (British Standard) Spacers and chairs for steel reinforcement and their specification - Product performance requirements
Standard BS 8110 – 1997 (British Standard) “Concrete and reinforced concrete structures”

Factors to consider when choosing to use Fiber concrete spacer :

Customers should consider the following factors when choosing to use HAN concrete bearings, including:

It is necessary to rely on the current construction standards of Vietnam or foreign countries. And most importantly, the specified standard is being applied to the project.
The choice of concrete spacer depends on the nature of the structure and the type of concrete bearings used based on HAN's technical data sheet
The protective concrete cover required by the standard (eg EN206 paragraph 6.3 or other appropriate standard) specifies the nominal protective concrete layer.
The load of the pad from the weight of the reinforcement and additional loads such as foot traffic during concrete pouring, fixing and erection work.

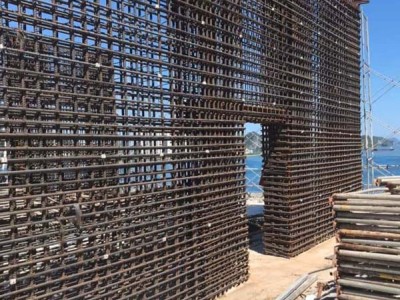

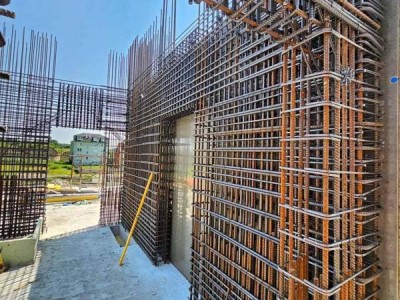

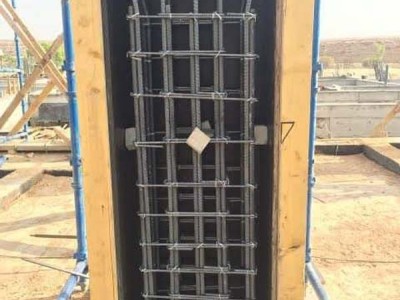

Diameter and location of reinforcement - wall/slab - Horizontal or vertical
Reinforcement type - single bar or plate or mesh rebar
Single size type, simple, fast and cost-effective fixing
Multi-size fixed type - no tie or with pre-tied
Single size type with embedded tie wire, multi-purpose, secure fixing
Round type, Bar type, specialized design type....
External influences affecting concrete, such as pressure, temperature, chemical attack, moisture penetration, fire and corrosion
Concrete surface finishing - plastering work
Exposed concrete - traces of spacers become clear on the concrete surface
