Standard
Meet current construction material standards.
Meet user safety standards.
Meet environmentally friendly production technology standards.
Meet modern production management standards.
Standards:
Specifications
Function: helps to fasten steel bars so they do not shift during construction and concrete pouring
Construction location: fasten steel structures in reinforced concrete structures.
Material: Black steel wire, galvanized steel wire, stainless steel wire, PVC-coated steel wire
Quality: soft, flexible, easy to bend when fastening steel bars
Diameter: commonly 1mm or designed on request: 1mm - 3mm
Length: common length from 80mm - 500mm or designed on request
Packing: 1000-5000 pieces/ box/ bag
General introduction to Tie Wires and Loop Tie Wires
Tie wire is a type of wire with many different lengths and diameters, produced from many different materials for diverse uses in: construction, industry.
- For construction: tie wire can be used to tie steel bars.
- For industry: tie wire can tie packaging
Depending on the needs of use, there are the following types of tie wire
- Straight tie wires
- Tie wire coils
- Loop tie wires

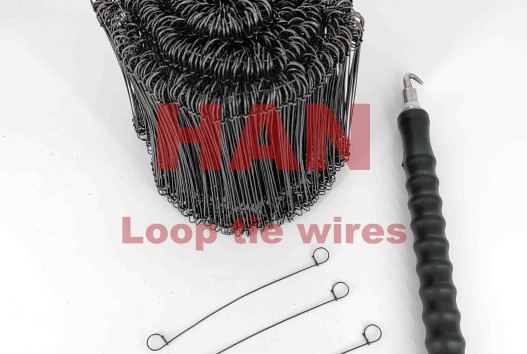

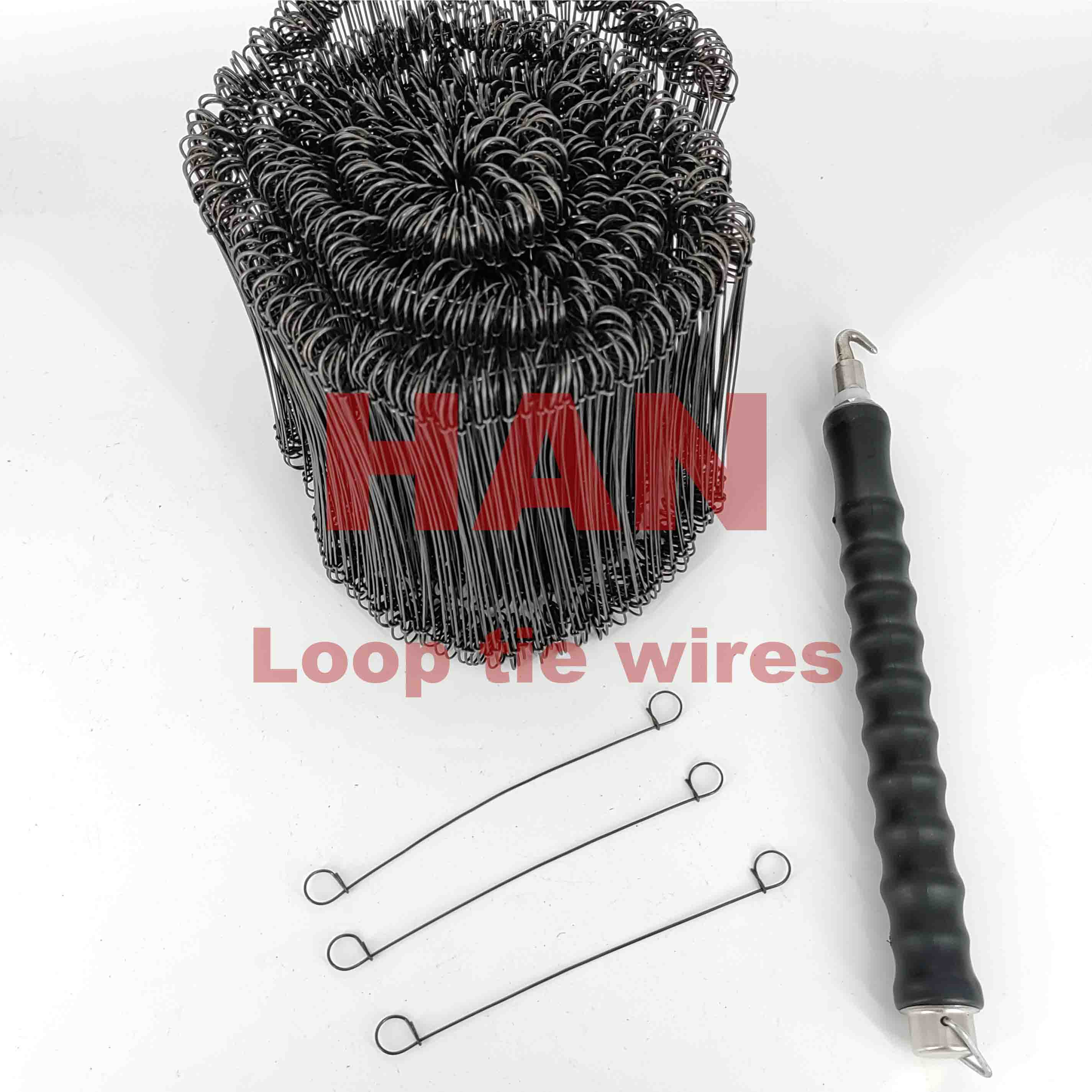

Loop tie wires is a type of wire made from metal (can be black steel, galvanized steel, PVC coated steel, stainless steel, aluminum wire,...) that is stretched, cut and crimped at both ends into hooks and cut to different lengths depending on requirements.
Loop tie wire is suitable for use with Loop Tie Tool Auto Twist when tying steel.
In construction, coil tie wire is called double loop tie wire, tie hook wire, pot hook wire, steel column hook wire, steel pot ring wire,....
Types of loop tie wires
Depending on the material used to produce the roll tie, we have the following types of straight tie
- Black annealed steel loop tie wires

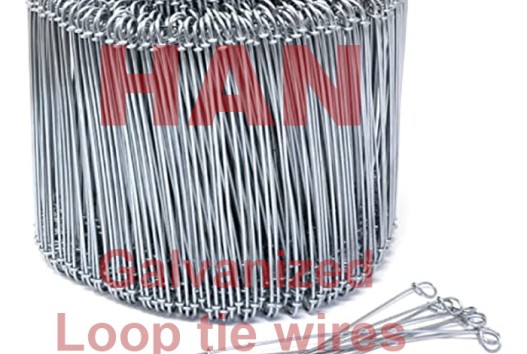

- Galvanized steel loop tie wires
- PVC coated steel loop tie wires
- Stainless steel loop tie wires
![]() |
![]() |
|

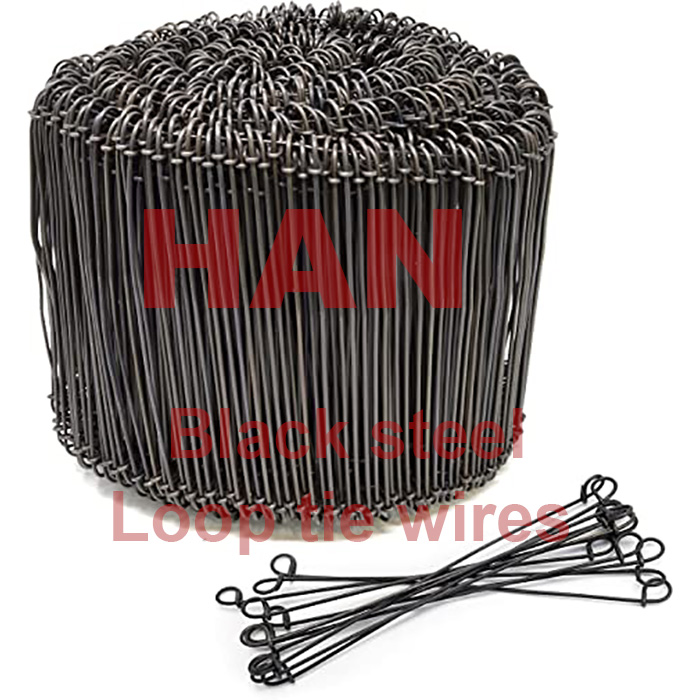

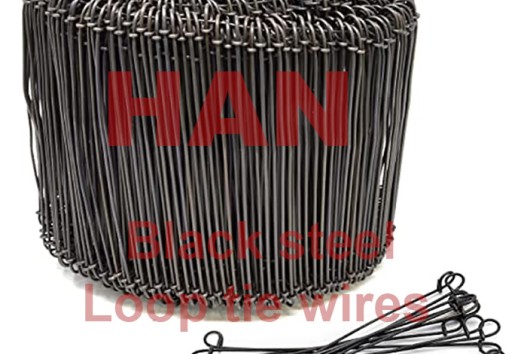

Black annealed steel loop tie wires |
Galvanized steel loop tie wires |
Stainless steel loop tie wires |
Construction production technology
Depending on the different types of materials, the loop tie wires has a suitable production technology.
Methods of tran sporting and storing Loop tie wires
Each type of loop tie wires has different material properties, so it will have different packaging specifications. Therefore, to ensure transportation and storage of tie, it is necessary to note:
- When tran sporting, limit the weight of heavy objects to deform
- With black steel wire, it must be stored in a dry place, away from moisture. When not in use, it must be kept indoors.
HAN's loop tie wires quality standards
Each HAN Loop tie wires is tested to ensure quality standards appropriate to the industry in which it is used.
Advantages of HAN Loop tie wires
HAN's loop tie wires have the following advantages:
- Appropriate quality standards
- Processing specifications suitable for usage needs
- Diverse sizes of diameters, lengths, and materials.
- Production and packaging according to standard specifications and on request
- Combined with other products of the HAN's environment to meet all construction requirements.
